| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |

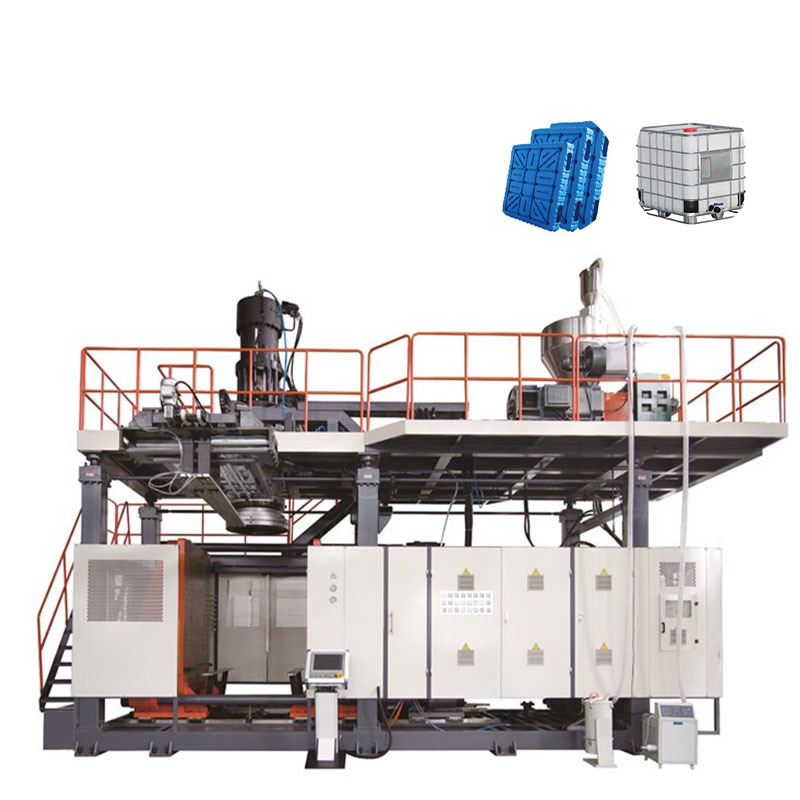

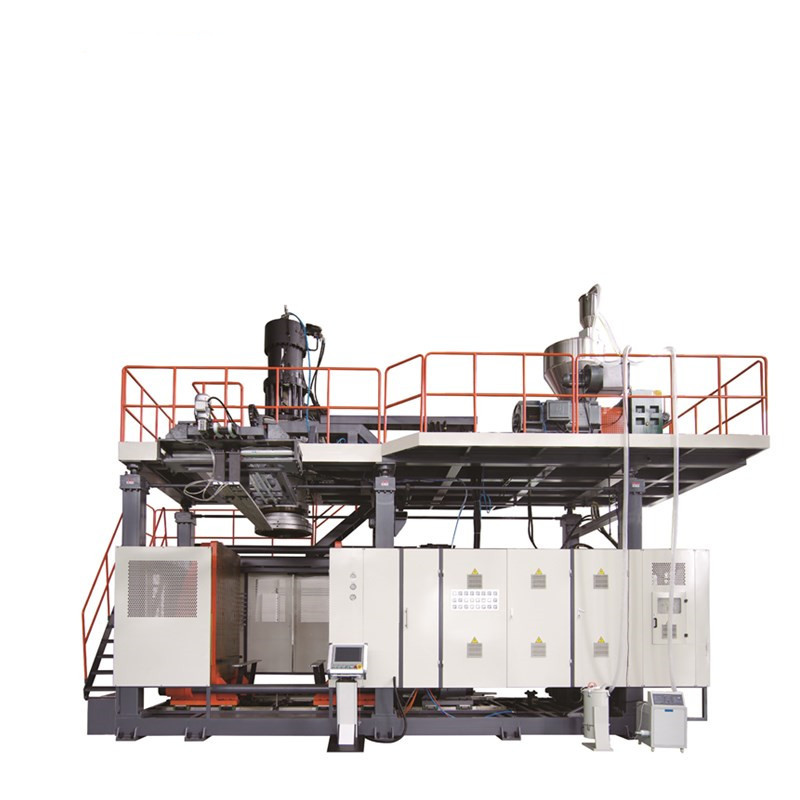

JWZ-BM series blow-molding machine are suitable for large-scale production of milk-bottle, drink-bottle, water-bottle, hot–filling bottle, medical containers, container used for cosmetic, spices, pesticides, lubricants and computer suppliers, it is also applicable for making small plastic toys.
In order to improve the efficiency, short the time that used for bottle forming, we equip with post-cooling device, so the products have good quality. According to the requirement of the customer, we can equip with other downstream equipments, so that the line can convey the finished products and trim waste-margin automatically.
|
Model |
Unit |
BM2000 |
|
Max product volume |
L |
2000 |
|
Dry cycle |
Pc/h |
155 |
|
Die head structure |
Accumulating type |
|
|
Main screw diameter |
mm |
120*2 |
|
Max plasticizing capacity (PE) |
kg/h |
700 |
|
Driving motor |
Kw |
132*2 |
|
Accumulating volume |
L |
75 |
|
Oil pump motor power(Servo) |
Kw |
55 |
|
Clamping force |
KN |
1800 |
|
Space between platen |
mm |
1000-2700 |
|
Platen size W*H |
mm |
1600*1800 |
|
Max. mold size |
mm |
1400*1800 |
|
Heating power of die head |
Kw |
65 |
|
Machine dimension L*W*H |
m |
11*8.2*7.5 |
|
Machine weight |
T |
70 |
|
Total power |
Kw |
460 |
Note:Information listed above are for reference only, the production line can be designed by customer’s requirements.
