Aluminum and Plastic Composite Panel Extrusion Line

Place of Origin:

China

Brand Name:

Jwell

Certification:

ISO CE UL TUV

Competitive advantage:

High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience

  • Aluminum and Plastic Composite Panel Extrusion Line
  • Aluminum and Plastic Composite Panel Extrusion Line
  • Aluminum and Plastic Composite Panel Extrusion Line
  • Aluminum and Plastic Composite Panel Extrusion Line

Applications

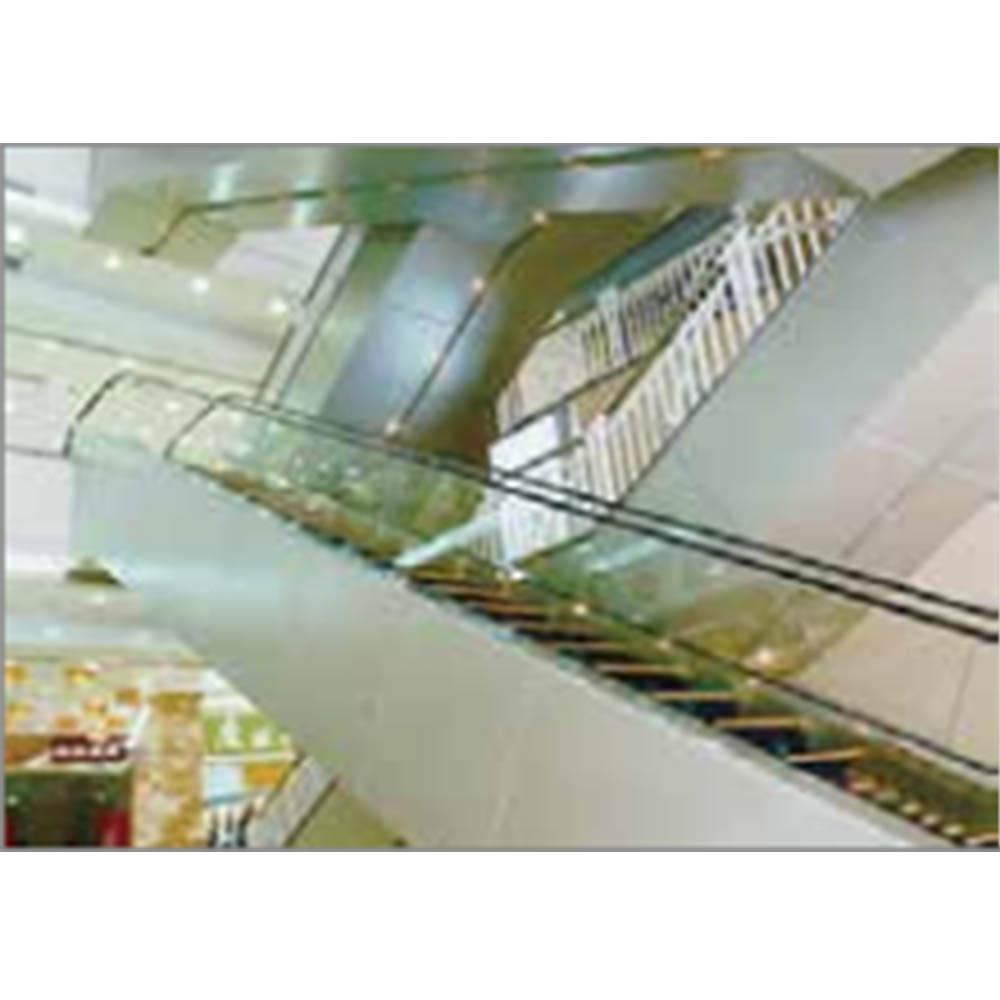

Mainly used for interior and exterior decoration.

Description

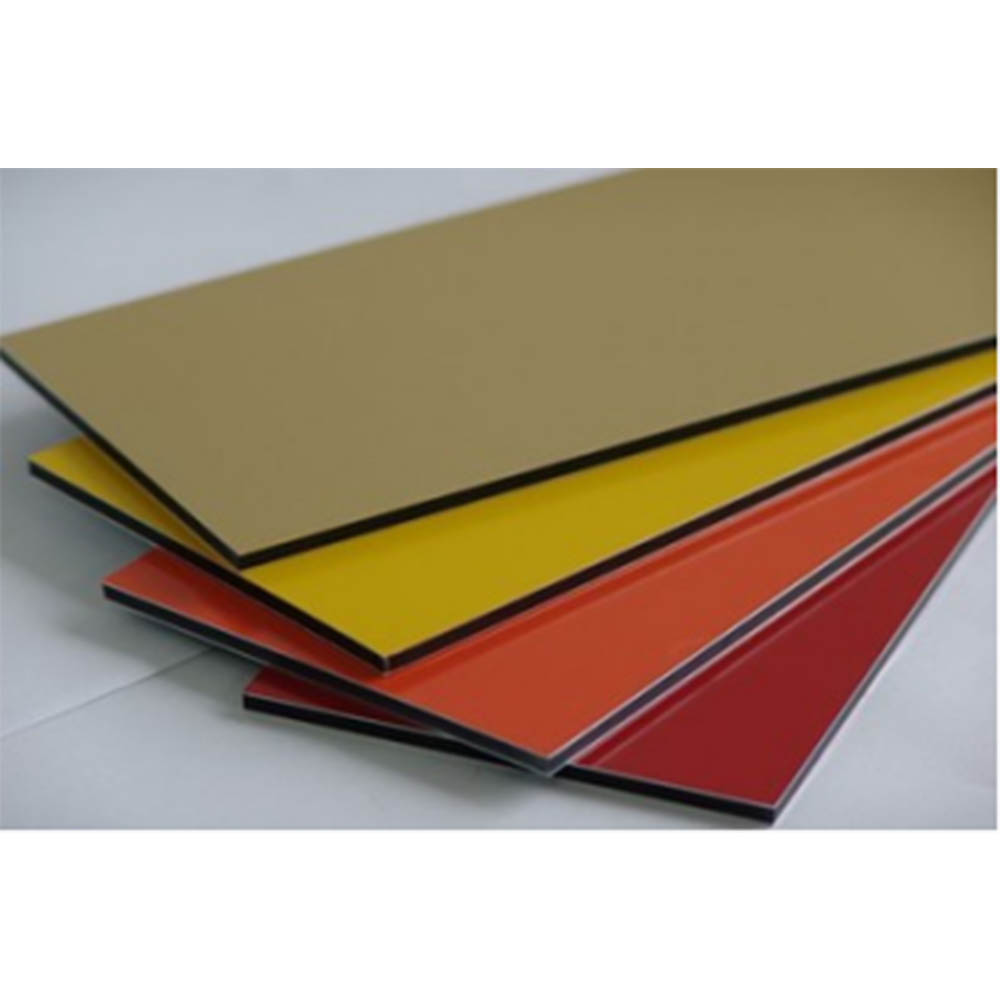

This kind of panel is suitable for interior and exterior wall decoration. The effective width of the product is 1220mm-2050mm, the thickness of the product is 1-5mm, and the thickness of aluminum foil is 0.026-0.5mm. Adopt special screw design, 100% recycled materials, produce qualified products. The production capacity is higher than other extruders. Products are exported to Indonesia, Russia, Vietnam and other countries and regions.

Specifications

Model

Capacity(kg/h)

Product thickness(mm)

Product width(mm)

Max line speed(m/min)

JWE95/44 Twin screw

800-1000

900-1560

1-6

8

JWE135/48 Twin screw

1200-1800

900-1560

2-6

10

JWS170/35 Single screw

500-600

900-1220

1-6

5

JWS180/35 Single screw

700-800

900-1560

1-6

5

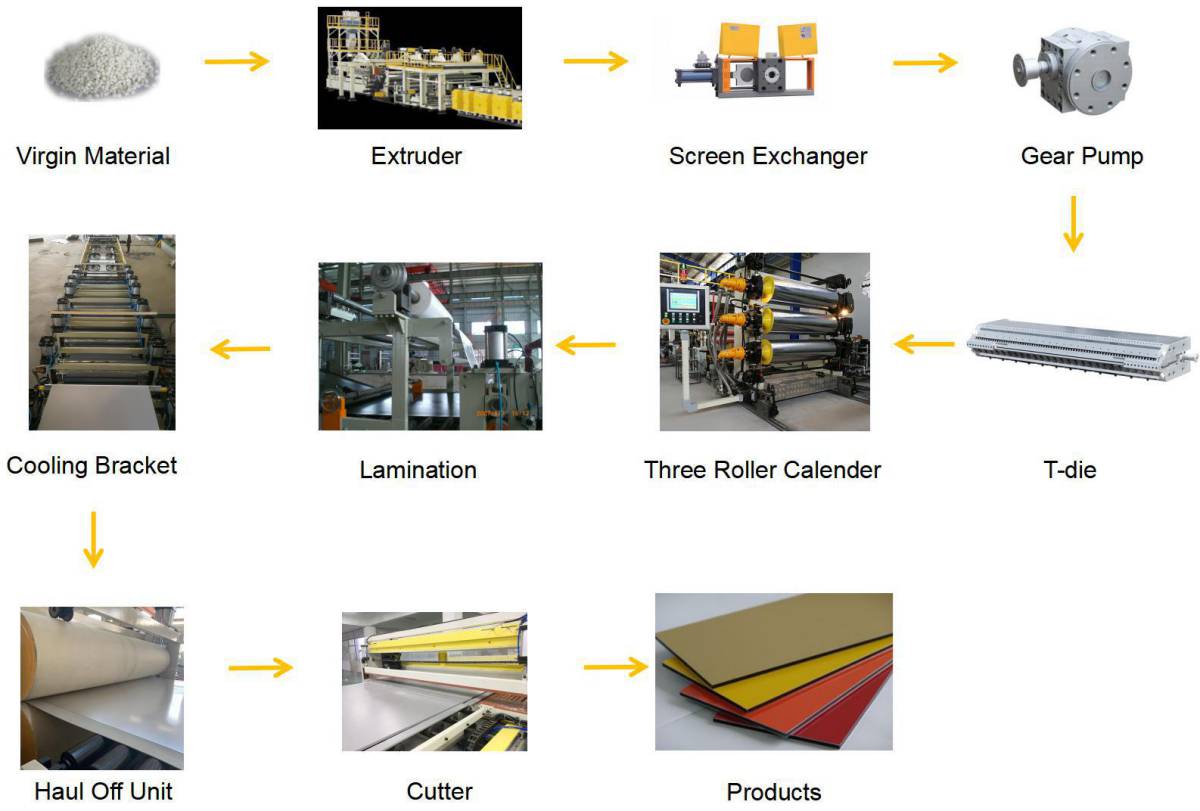

Process steps

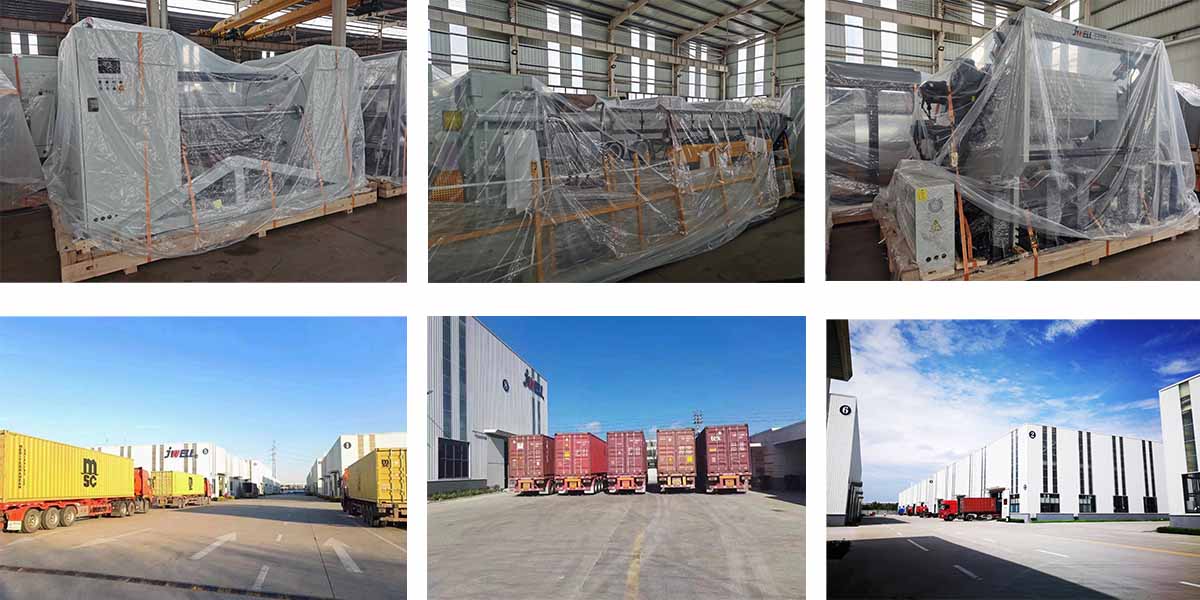

Shipment
