| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |

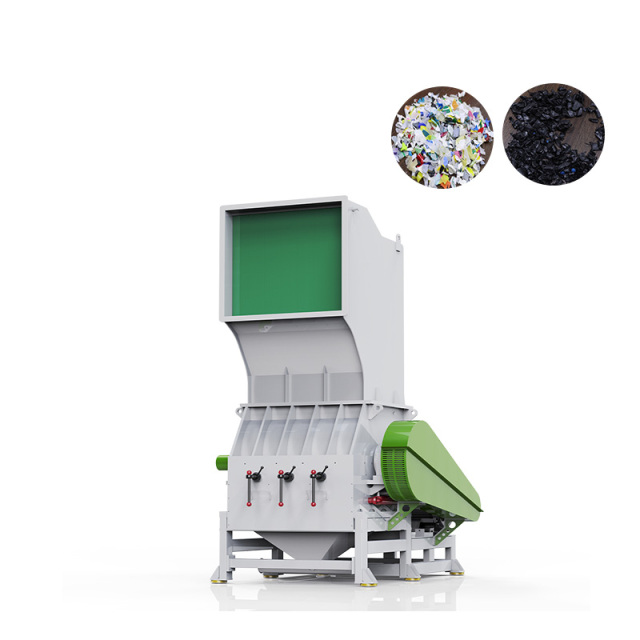

The DYPS-Z series heavy crusher is specially designed to meet the demanding requirements and the recycled material that is not easily crushed, and the thickness is between 3~30m.

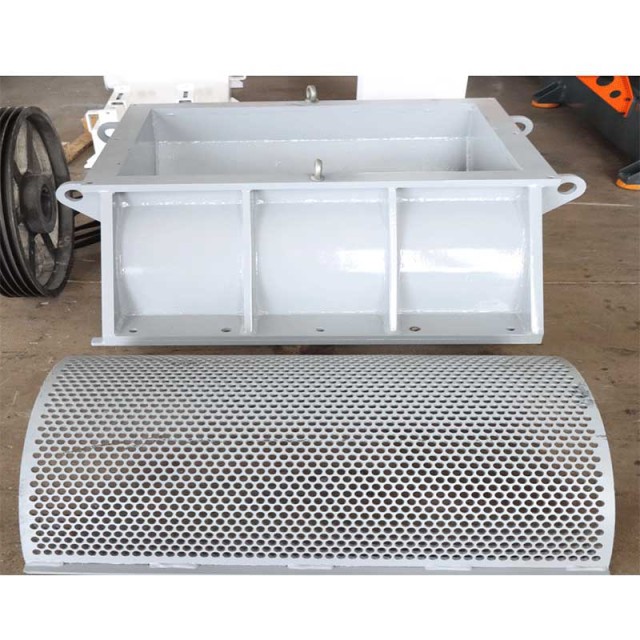

Cabinet: The main box adopts solid welded steel structure, precision machining by CNC machine tool. It has the characteristics of large thickness, high strength, strong wear resistance, no pollution and long service life. Equipped with exquisite buckle, fastening durable, scientific design, easy to lift pressure, the upper box can be easily opened, hydraulic device, convenient maintenance.

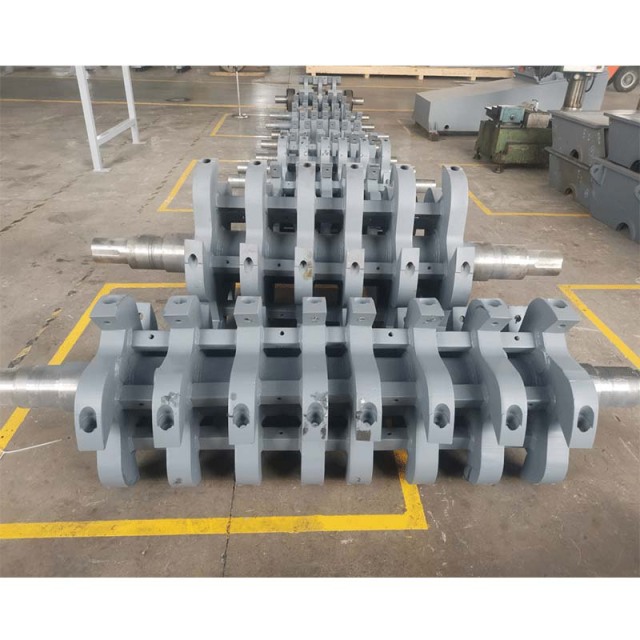

Spindle: Made of high quality steel, dynamic and static balance, not easy to deform when working, stable working state. Adopting the latest "V" cutting technology, according to the different grinding materials, the rotor can be processed into different quantities. Make the blade in the work to achieve uniform cutting, energy saving and emission reduction, reduce noise.
Specifications
| MODEL | FEED MOUTH SIZE (MM) |
MAIN MOTOR POWER (KW) |
MOVING KNIFE QUANTITY (PIS) |
FIXED KNIFE QUANTITY (PIS) |
ROTOR DIAMETER (MM) |
OUT PUT (KG/H) |
| DYPS-Z 800 | 800*800 | 37-75 | 6/10 | 4 | Ф600 | 600 |
| DYPS-Z 1000 | 1000*1000 | 55-110 | 10/14 | 4/6 | Ф700 | 800 |
| DYPS-Z 1200 | 1200*1000 | 90-132 | 10/14/18 | 4/6 | Ф800 | 1000 |
| DYPS-Z 1500 | 1500*1000 | 110-200 | 14/18 | 4/6 | Ф1000 | 1200 |
Process steps
