| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |

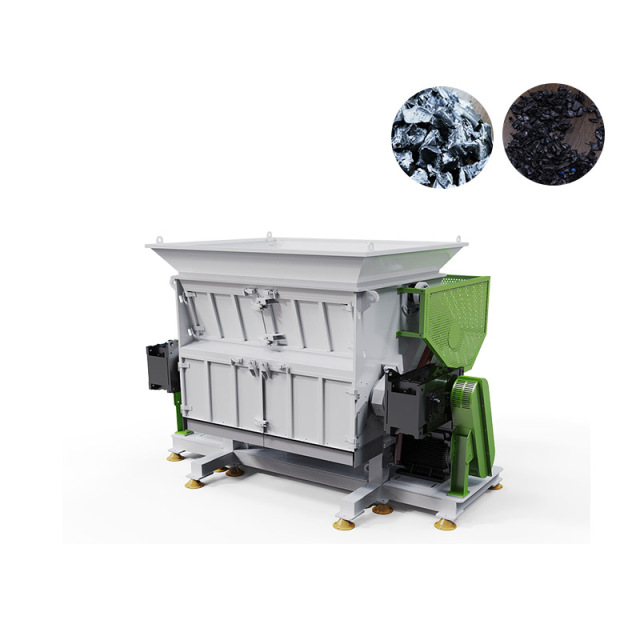

All DYSSJ models have a standard pusher plate, which is more convenient for crushing large solid bodies or pallets, wood, etc.
DYSSJ series shredder has the advantage of its strong push rod and the clever combination of heavy directional bearings to make the operation safe and reliable. Fully automatic crushing process, with beautiful design visual material window, can arbitrarily observe crushing effect and crushing dynamic process. At the same time DYSSJ series models can be designed according to the needs of different feeding hopper, suitable for batch feeding hopper can optimize production, because the pusher can continue to be crushed material pushed to the rotor, improve crushing efficiency, and will not cause too much feeding problems.
Specifications
| MODEL | CRUSH CHAMBER MAX. SIZE (MM) |
DRIVE POWER (KW) |
ROTOR BLADE QUANTITY (PIS) |
FIXED BLADE QUANTITY (PIS) |
ROTOR BLADE SWING DIAMETER (MM) |
ROTOR SPEED (RPM) |
| DYSSJ- 850 | 700*730 | 37 | 60 | 3*2 | Ф435 | 37 |
| DYSSJ- 1500 | 800*1290 | 75 | 102 | 5*2 | Ф505 | 37 |
Process steps
