| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |

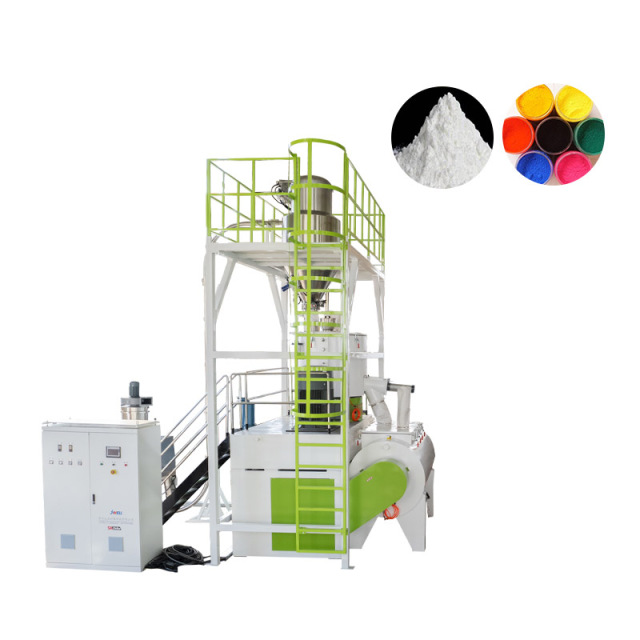

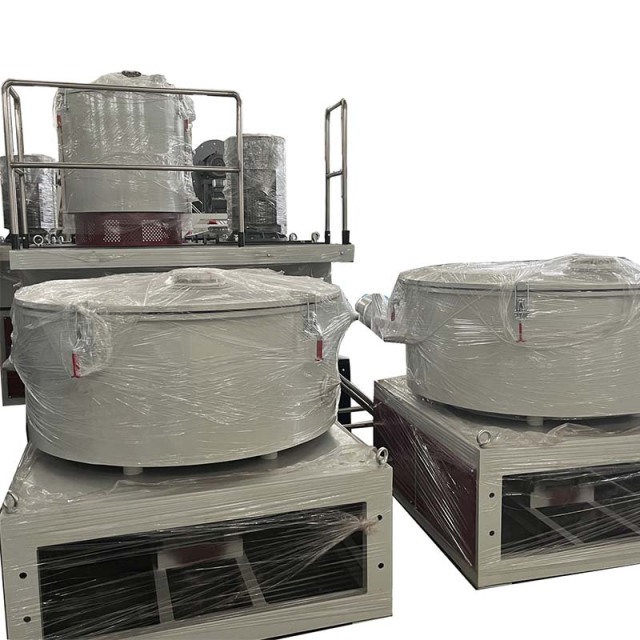

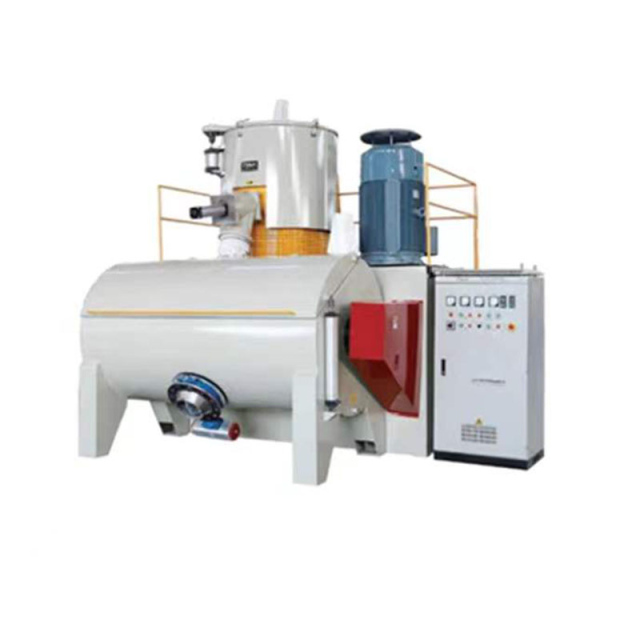

DYHL series mixer adopts PLC control, which combined machine units mainly used batching,mixing,coloring and drying for various resins, such as polythene,polypropylene and PVC,as well as the drying and devolatilization process of engineering plastics such as ABS and polycarbonate before shaping, It also can be used for prevent resin.
This unit has combined the technology of hot mixing and cool mixing,which can let the material enter cool mixing after hot mixing automatically so as to cool it and removal of residual gas to prevent blocking.
| Model | DYHL 200/500 | DYHL 300/600 | DYHL 500/1000 | DYHL 800/1600 | DYHL 800/2500 | DYHL 1000/3000 |
| Type | Vertical | Vertical | Vertical | Vertical | Horizontal | Horizontal |
| Capacity (L) | 200/500 | 300/600 | 500/1000 | 800/1600 | 800/2500 | 1000/3000 |
| Effective capacity(L) | 150/320 | 225/380 | 330/750 | 600/1050 | 600/1500 | 700/2100 |
| Motor (KW) | 30/42/11 | 40/55/11 | 55/75/15 | 83/110/22 | 83/110/30 | 110/160/30 |
| Output(kg/h) | 330 | 495 | 825 | 1050 | 1320 | 1650 |
