| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |

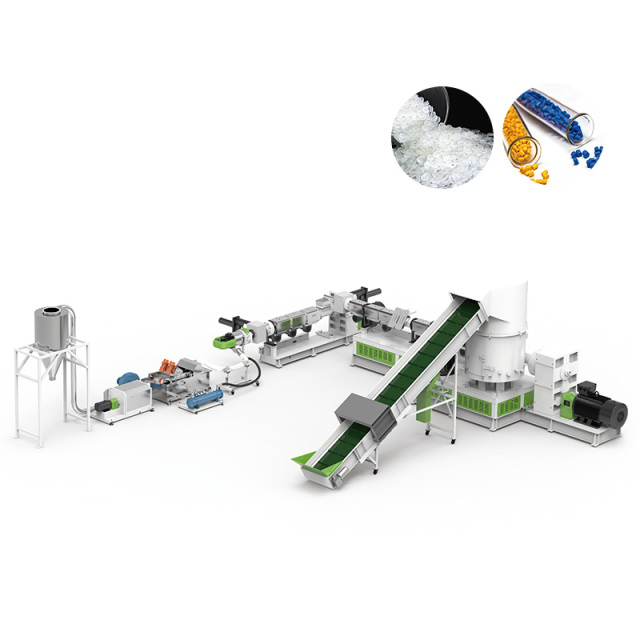

This extruder adopts special screw design and different configurations, and is suitable for the regeneration of various dry film plastics such as PP, PE, BOPP, BOPET, BOPA, PA66, etc.
Feeding system adopts high speed blade cutting and forced feeding device. It can achieve the purpose of crushing materials quickly. The screw and barrel are wear-resistant and have good mixing effect after special surface treatment. Vacuum exhaust port or natural exhaust port design can remove moisture and waste gas in the production process, have stable output and make the particles more dense to ensure the good quality of products.
| MODEL | SCREW DIAMETER(MM) | L/D | SCREW SPEED (RPM) |
POWER OF MAIN MOTOR (KW) |
OUT PUT (KG/H) |
| JWP90 | 90 | Jan-36 | 20-150 | 75-90 | 200-300 |
| JWP120 | 120 | Jan-36 | 20-120 | 110-132 | 300-400 |
| JWP150 | 150 | Jan-36 | 20-100 | 160-200 | 400-500 |
| JWP180 | 180 | Jan-36 | 20-100 | 250-315 | 600-800 |
Process steps
